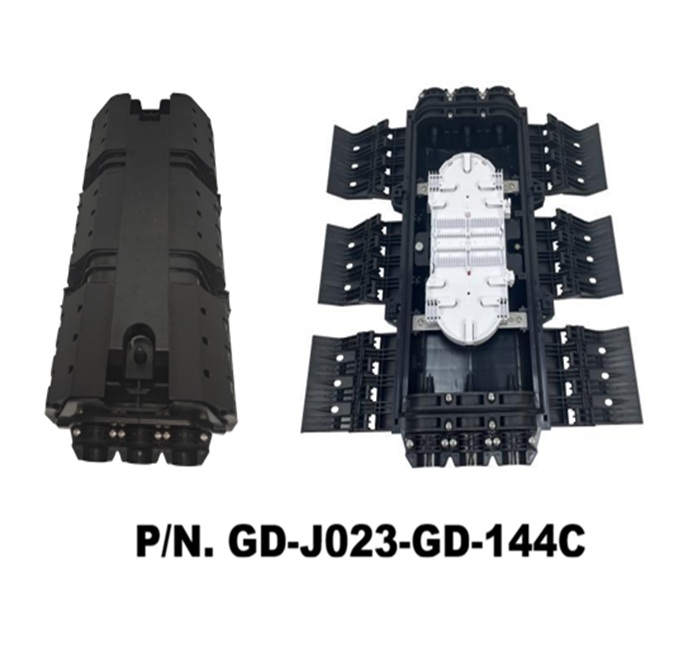

144C FIBER OPTIC FLAT CLOSURE (3TRAYS- 48C)

GD-J023 144C Flat Fiber Optic Closure PRODUCT SPECIFICATIONS The GD-J023 is a flat (horizontal) type fiber optic splice closure used for splicing, branching, and protecting optical fibers in outdoor environments. It is widely used in FTTH, FTTX, LAN, WAN, and telecom infrastructure. Key Features • Capacity: Up to 144 cores • Type: Flat / Inline (horizontal closure) • Application: o Aerial o Underground (duct / direct buried) o Wall or pole mounting • High sealing performance (IP68): Protects against water, dust, and harsh weather • Reusable design: Can be opened and re-sealed multiple times without damage • Durable material: High-strength engineering plastic (PC/ABS/PP) for impact and UV resistance • Internal splice trays: Organized fiber management with multiple trays (typically up to 6) • Cable ports: 2–4 in/out ports (depending on configuration) Technical Specifications (Typical) • Max Capacity: 144 fibers • Material: PC / ABS (UV & corrosion resistant) • Operating Temperature: -40°C to +60°C • Mounting: Pole / Wall / Duct / Direct buried • Protection Level: IP68 (waterproof & dustproof) • Dimension (approx.): ~460 × 180 × 100 mm (varies by model) Applications • Fiber optic network distribution • FTTH / FTTX • Telecom backbone & access networks • Cable branching and joint protection • Optical LAN / WAN systems Typical Use • Joining two fiber cables (inline splicing) • Branching fiber to different directions • Protecting splice points from environmental damage

SAR 200.00

SKU: GS2604010002
