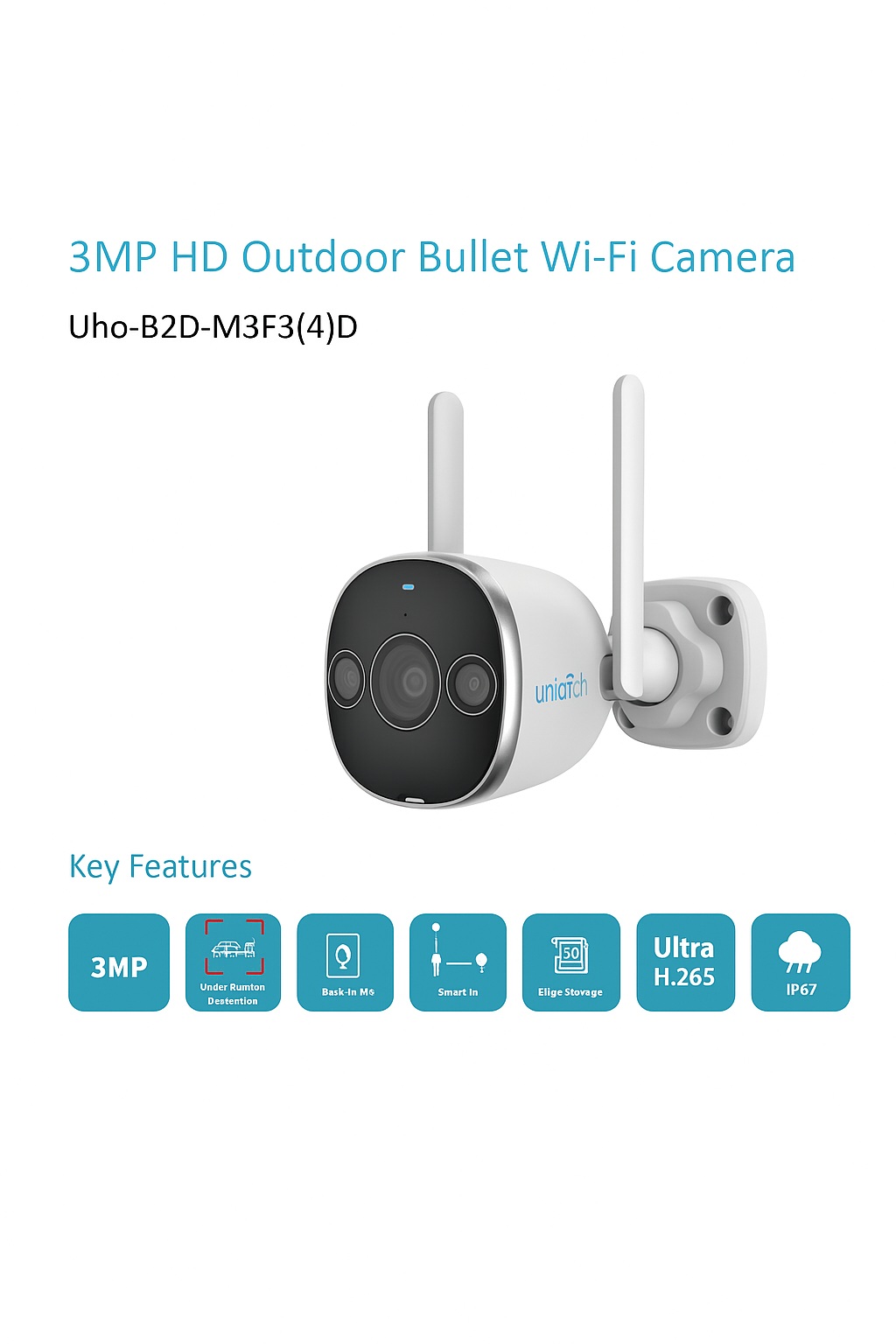

[54508485] Uho-B2D-M3F4D - Wifi 3MP IR Mini Bullet Network Camera,lens:4.0

General / Overview Brand: Uniview (Uniarch line) ropere.com +2 cctv.net +2 Model: Uho-B2D-M3F4D (Dual-Light Bullet, WiFi) uniarch.cn +1 Type: Outdoor bullet network camera (WiFi + Ethernet) uniarch.cn +1 Image Sensor, Lens & Optics Parameter Value Sensor 1/3.0″ CMOS, progressive scan uniarch.cn +1 Resolution / Max 3 MP (2304 × 1296) @ 25/20 fps uniarch.cn +2 ropere.com +2 Lower resolutions available 2 MP (1920 × 1080) @ 30/25 fps; 720p (1280 × 720) @ 30/25 fps uniarch.cn +1 Lens Fixed lens, 4.0 mm (F1.6) uniarch.cn +1 Aperture F1.6 uniarch.cn Field of View (H × V × D) ~80.2° horiz., ~42.9° vertical, ~86.0° diagonal (with 4.0 mm lens) uniarch.cn +1 Illumination & Night Vision Feature Specification Smart IR range Up to 20 m (~66 ft) for IR illumination uniarch.cn +1 Warm light (LED) Up to 10 m (~33 ft) uniarch.cn +1 Dual light mode Support (switch between IR & warm LED under predefined conditions) uniarch.cn +1 Minimum illumination Colour: ~0.003 lux (F1.6, AGC on); 0 lux with IR on uniarch.cn Day/Night switch IR-cut filter with auto switch (ICR) uniarch.cn +1 Video / Compression / Streams Supported video compression: Ultra265, H.265, H.264, MJPEG uniarch.cn +2 cctv.net +2 Frame rates as above (3MP @25/20 fps; lower res up to 30 fps) uniarch.cn +1 Dual streaming (Main + Sub) and adjustable bitrate (~128 Kbps to ~6 Mbps) uniarch.cn Features like dual-light, Smart IR, digital noise reduction (2D/3D DNR) uniarch.cn +1 Audio / Other Features Built-in microphone & built-in speaker (two-way audio) uniarch.cn +1 Basic detection / alarms: motion detection, sound/audio detection, tamper alarm uniarch.cn +1 Privacy mask, OSD, ROI support etc. uniarch.cn Connectivity & Storage Feature Value Network / Wired RJ-45 (10/100 Mbps) Ethernet provided uniarch.cn +1 Wireless WiFi 2.4 GHz (802.11 b/g/n) with built-in antenna uniarch.cn +1 Edge / On-board Storage micro-SD up to 128 GB uniarch.cn +1 Protocols / Compatibility ONVIF, API / SDK integration; standard streaming protocols etc. cctv.net +1 Physical / Environmental Protection rating: IP67 (dust tight, water resistant) uniarch.cn +1 Power requirement: DC 12V ±25% uniarch.cn +1 Power consumption: Max ~5.7 W uniarch.cn +1 Size / Dimensions: ~148 × 78 × 78 mm uniarch.cn +1 Weight: around 0.31 kg uniarch.cn +1 Operating temperature: -30 °C to +60 °C; Humidity ≤ 95% RH (non-condensing)

SAR 161.00

SKU: GS20250998
