6C Fiber Optic Cable SM 9/125 OS2, Central Loose Tube, Outdoor non Armoured, ( Micro-duct) HDPE Sheath, Black Model# 191703 -Datwyler Switzerland

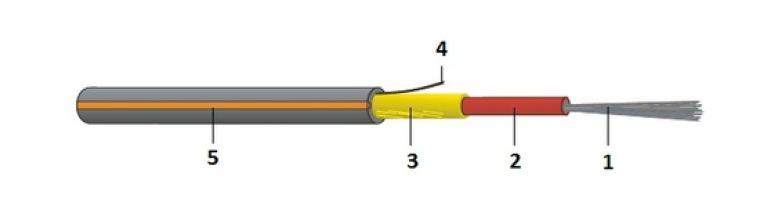

Very thin, metal-free fiber optic outdoor cable with up to 24 fibres in one central loose tube. Easily cut-back, installation friendly cable construction. FTTx, Fibre-to-the-home networks. Optimised for injection into microducts MECHANICAL PROPERTIES Temperature range storage: -40/+70°C IEC 60794-1-22 F1 during installation/injection: -2/+35°C in operation: -40/+70°C Tensile performance: IEC 60794-1-21 E1 Crush resistance: IEC 60794-1-21 E3 Repeated bending: IEC 60794-1-21 E6 Torsion: IEC 60794-1-21 E7 Bend: IEC 60794-1-21 E11 Water penetration: IEC 60794-1-22 F5 Reaction to fire (Euroclass) EN 13501-6: Fca Imprint DATWYLER «cable type» «Datwyler designation» «DIN designation» «no. of fibres» «fibre type» «add. text» «batch no.» «meter marks» Zero halogen, no corrosive gases IEC 60754-1/-2, EN 60754-1/-2, VDE 0482-754-1/-2

SAR 4.50

SKU: GS20250544
