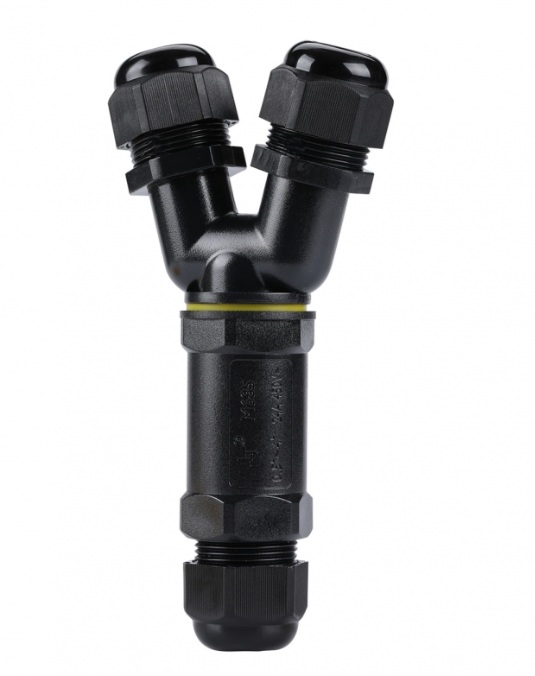

2pin/ 3pin/ 4pin/ 5pin(screw type) IP68 Waterproof Connector M685-Y

M685-Y IP68 Waterproof Connector The M685-Y model is a Y-type IP68 waterproof cable junction connector used to split/branch power cables outdoors with excellent moisture and dust protection. Common features from supplier specs include: 🔋 Electrical & Physical Key Specs Model: M685-Y*2pin*3pin*4pin*5pin(screw type) IP Code: IP68 (Patented) (with 20 metres water column for 150 hours) Color: Black Connection Type: Screw Ampere / Voltage: 32A 450VAC Temperature Range: -40-105°C Wire Section: 0.5 ~ 4.0 mm² Outer Cable Diameter: 4-8mm or 8-12mm or 10-14mm Certificates: ENEC,CE,CB,UKCA,NSW,ETL,ROHS • Supports 2, 3, 4, or 5-pole connections. • Accepts a wide cable diameter range (~4 – 14 mm) with removable seal inserts. • Screw-type terminal connections (no soldering needed). • Durable nylon/polyamide housing resistant to UV, impact, fire and chemicals. 🌧️ Typical Uses • Outdoor lighting (LED, landscape, street lighting) • Power cable branching/extensions • Garden, marine, industrial or construction wiring • Pumps, automation, CCTV systems and other outdoor electronics

SAR 20.00

SKU: GS20260130
