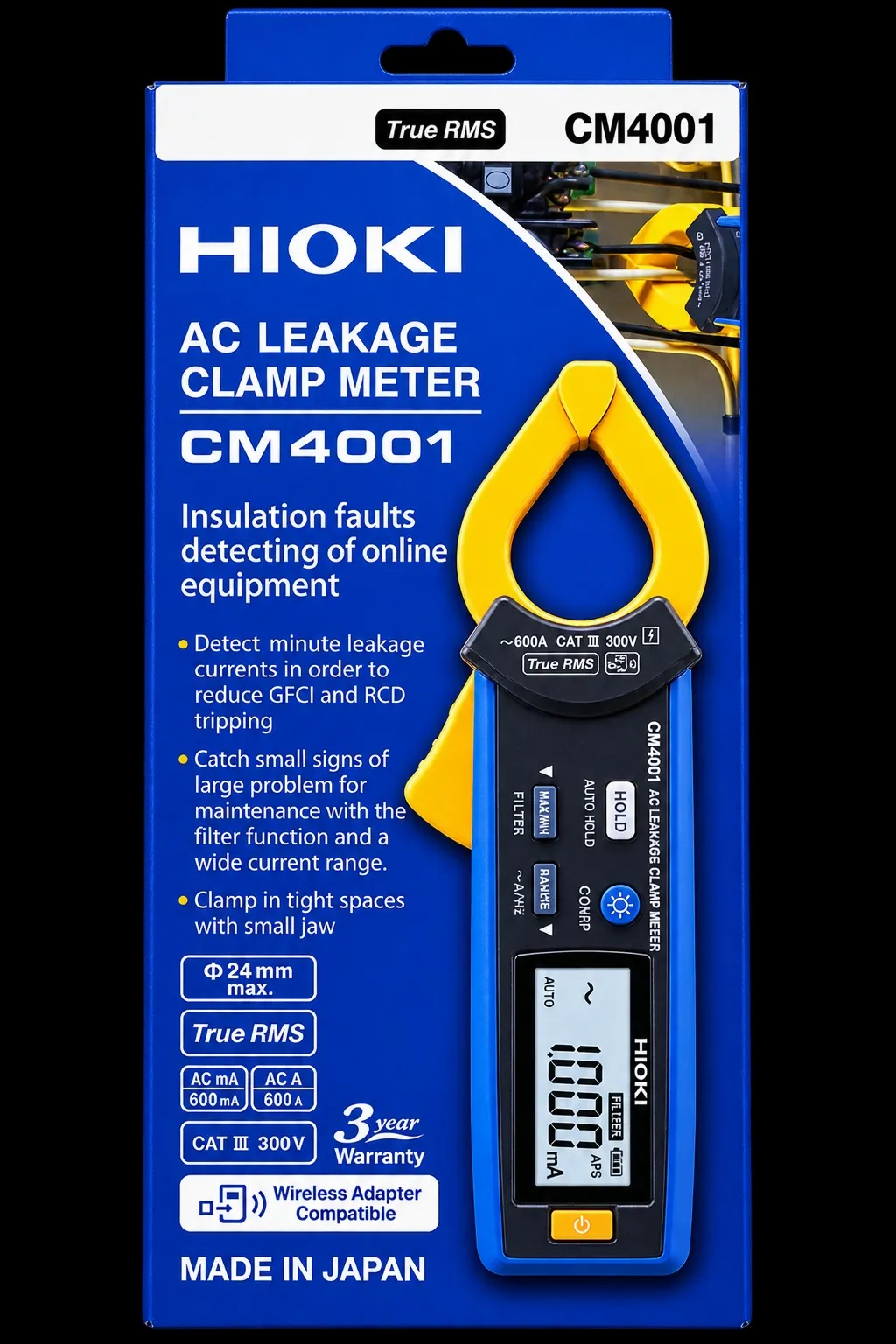

AC LEAKAGE CLAMP METER P/N. CM4001 - HIOKI - Made In Japan

The Hioki CM4001 is a compact, True RMS AC leakage clamp meter designed specifically to measure both minuscule earth leakage currents and heavy load currents safely. Manufactured in Japan, its defining trait is its innovative teardrop-shaped slim jaw, which allows technicians to easily clamp around wires inside crowded electrical panels and tight spaces. Key Specifications & Capabilities • Measurement Range: High-accuracy coverage from 0.60 mA up to 600.0 A AC split across 5 auto-ranging spans (60 mA / 600 mA / 6 A / 60 A / 600 A). • High Resolution: Detects minute leakage deviations with a precise 10 µA resolution. • Physical Core Diameter: Slim jaws accommodate a maximum conductor size of 24 mm (0.94 inches). • Frequency Range: Supports measurements across 40.0 Hz to 999.9 Hz, featuring a built-in filter function to eliminate harmonic noise around the 50/60Hz fundamental frequency. • Safety Rating: Compliant with CAT III 300 V standards. Core Functions & Features • Built-in Comparator: Speeds up pass/fail troubleshooting by triggering a warning alarm and backlit visual cue if a measured current exceeds a user-defined threshold. • Inrush Current & Peak Hold: Easily captures transient startup spikes and records Max/Min/Avg RMS values to troubleshoot intermittent GFCI and RCD

SAR 1,540.00

SKU: GS2609000006
