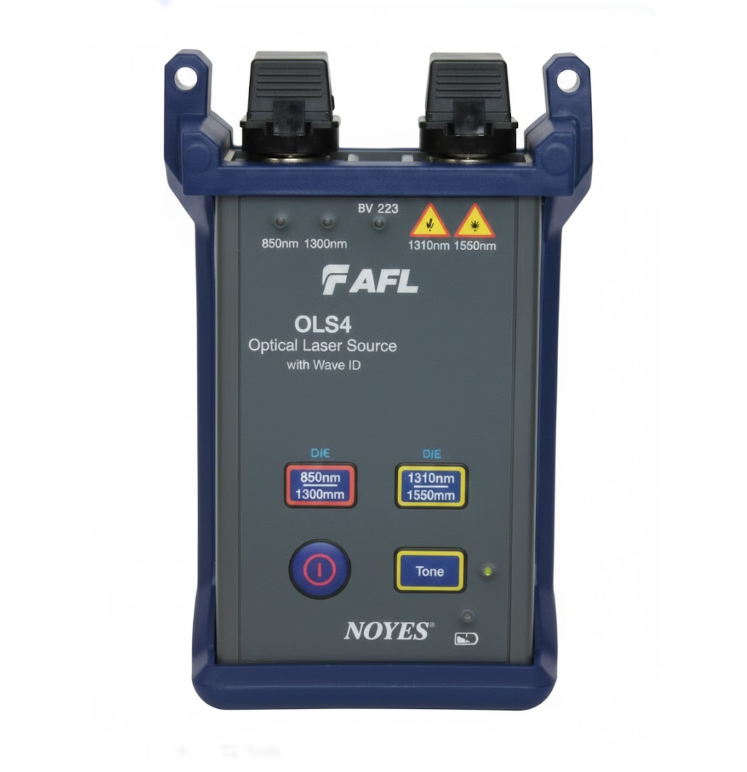

AFL OLS4-10-0900PR SC LED & Laser Light Source - Quad Wavelength Fiber Certifier

The AFL OLS4-10-0900PR is a rugged, integrated, two-port optical light source designed for comprehensive insertion loss measurements on both Multimode and Single-mode fiber optic links when paired with a compatible Optical Power Meter (OPM).1 This quad-wavelength source provides the essential test signals required for certifying fiber links to TIA/EIA standards, making it an indispensable tool for technicians working on LAN, Telco, CATV, and FTTx networks.2 Key Features & Benefits • Quad-Wavelength Testing: Combines both LED (Multimode) and LASER (Single-mode) outputs in one handheld unit.3 o Multimode (MM) Output: 850 nm & 1300 nm LED (from one port).4 o Single-mode (SM) Output: 1310 nm & 1550 nm LASER (from a second port).5 • SC Connector: Comes standard with an SC connector port for both MM and SM outputs. Field-swappable adapters (FC, ST, LC) are also available separately for maximum flexibility.6 • Wave ID® Technology: Drastically reduces test time and errors by simultaneously transmitting multiple wavelengths (MM and SM).7 When paired with an AFL Wave ID Power Meter, the meter automatically detects the wavelengths and stores the corresponding loss values.8 • Rugged Field Design: Built to withstand the harsh outside plant environment with a protective rubber boot, splash-resistant controls, and ability to withstand a one-meter drop test.9 • Stabilized Outputs: Ensures highly accurate and repeatable test results over long periods, meeting current TIA/EIA requirements.10 • Long Battery Life: Operates on globally available 2x AA batteries for long-lasting field performance.11 • Tone Output: Single-mode port includes a 2 kHz Tone for use with an Optical Fiber Identifier (OFI) for non-intrusive fiber tracing and identification.12 • High Output Stability: Guaranteed output stability for reliable measurements:13 o MM Port: $\pm0.1\text{ dB}$ over 8 hours. o SM Port: $\pm0.1\text{ dB}$ over 8 hours ($\pm0.05\text{ dB}$ over 1 hour).

SAR 9,000.00

SKU: GS06045
