B3-C1715-4C 16AWG Overall Shielded LSZH-HFFR

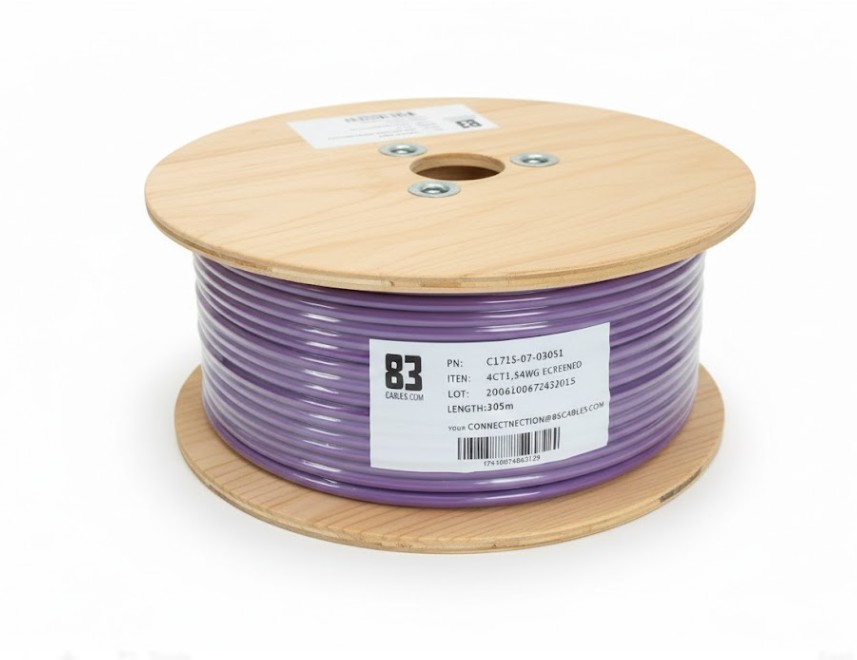

Product – B3-C1715-4C 16 AWG Overall Shielded LSZH-HFFR Cable Overview: A 4-core (4-conductors) 16 AWG flexible multi-conductor cable from the “C1715” series by B3 International — featuring overall shielding and a flame-retardant, low-smoke zero-halogen (LSZH / HFFR) sheath. Designed for audio, control, instrumentation, and building-management wiring especially in environments requiring enhanced fire-safety and minimal smoke / toxic gas emission. Construction & Materials: • Conductor: Stranded bare copper, 16 AWG (19 × 29 strands) • Insulation: HFFR / LSZH compound • Shield: Foil — Aluminium/Polyester tape, 100% coverage + tinned copper drain wire (24 AWG) • Outer Sheath (Jacket): Flame-retardant, Halogen-free (LSZH / HFFR) sheath, standard colour purple • Rip Cord: Nylon yarn (for easier sheath removal) Physical Dimensions & Characteristics (for 4-core version): • Insulation radial thickness: ≈ 0.25 mm • Sheath radial thickness: ≈ 0.65 mm • Approximate overall diameter: 6.0 mm • Operating temperature range: –25 °C to +75 °C • Standard Standard put-up length: 305 m (on reel) Electrical & Performance Specs: • Maximum DC Resistance of conductor: 15.47 Ω/km (typical for 16 AWG) • Maximum Recommended Current @ 25 °C: ~ 5.0 A (for 4-core) • Capacitance (conductor-to-conductor): ~ 300 pF/m • Inductance (nominal): ~ 0.5 µH/m • Maximum Operating Voltage (Vrms): 300 V Compliance / Standards: • Compliant with: IEC 60228, IEC 60754-1 & 2, IEC 61034 (smoke test), IEC 60332-3-24 (flame test), plus relevant parts of EN 50290 2. • RoHS-compliant (halogen-free / environmentally safer)

SAR 2,129.00

SKU: GS20251210
