Cat 6 Data Cable U/UTP 4 Pairs, 250MHz,24AWG, PE Outdoor cable Black (500Meter/Roll) Model# 194215 -Datwyler Switzerland

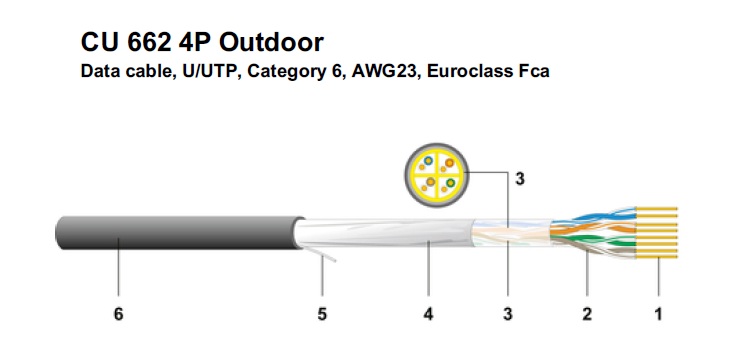

1 Inner conductor: AWG 23 Bare copper wire 2 PE insulated conductor: 1.0 mm Ø PE-Foam-Skin 3 Stabilising element designed for: - robustness - quick and easy termination - stable electrical performance 4 Structural element: diffusion barrier 5 Ripcord 6 Outer sheath: PE black DESCRIPTION Electrically and mechanically advanced quality Cat.6 data cable - fulfils the requirements of ISO/IEC 11801, IEC 61156-5, EN 50173-1 und EN 50288-6-1. Robust cable design with a very high mechanical stability and reliable electrical performance thanks to the stabilising element. Enhanced UV protection due to PE outer sheath. Simple, fast and reliable termination thanks to the special cable stripper Abi 62 (Article No. 185640). This tool is applicable for - removal of outer sheath - removal of stabilising element from pairs Compatible with all current connecting hardware in accordance with EN 50173 and ISO/IEC 11801. APPLICATION Data cable for outdoor installation. For the transmission of digital and analogue voice, video and data signals. Suitable for all ICT network applications up to class E applications (250 MHz) in accordance with EN 50173-1 and ISO/IEC 11801. Applicable for Power over Ethernet (PoE) / PoE+. ELECTRICAL CHARACTERISTICS Category 5e 6 Frequency [MHz] 1 4 10 100 250 300 Attenuation [dB/100m] 1.9 3.7 5.6 17.9 28 32 NEXT [dB] 82 75 71 55 43 40 PS NEXT [dB] 79 72 68 52 40 37 ACR-N [dB] 80 71 65 37 15 8 PS-ACR-N [dB] 77 68 62 34 12 5 ACR-F [dB] 90 80 71 42 35 31 PS-ACR-F [dB] 87 77 68 39 32 28 Return loss [dB] 27 30 32 32 28 28 These performance data are typical measured values.

SAR 2,180.00

SKU: GS20250530
