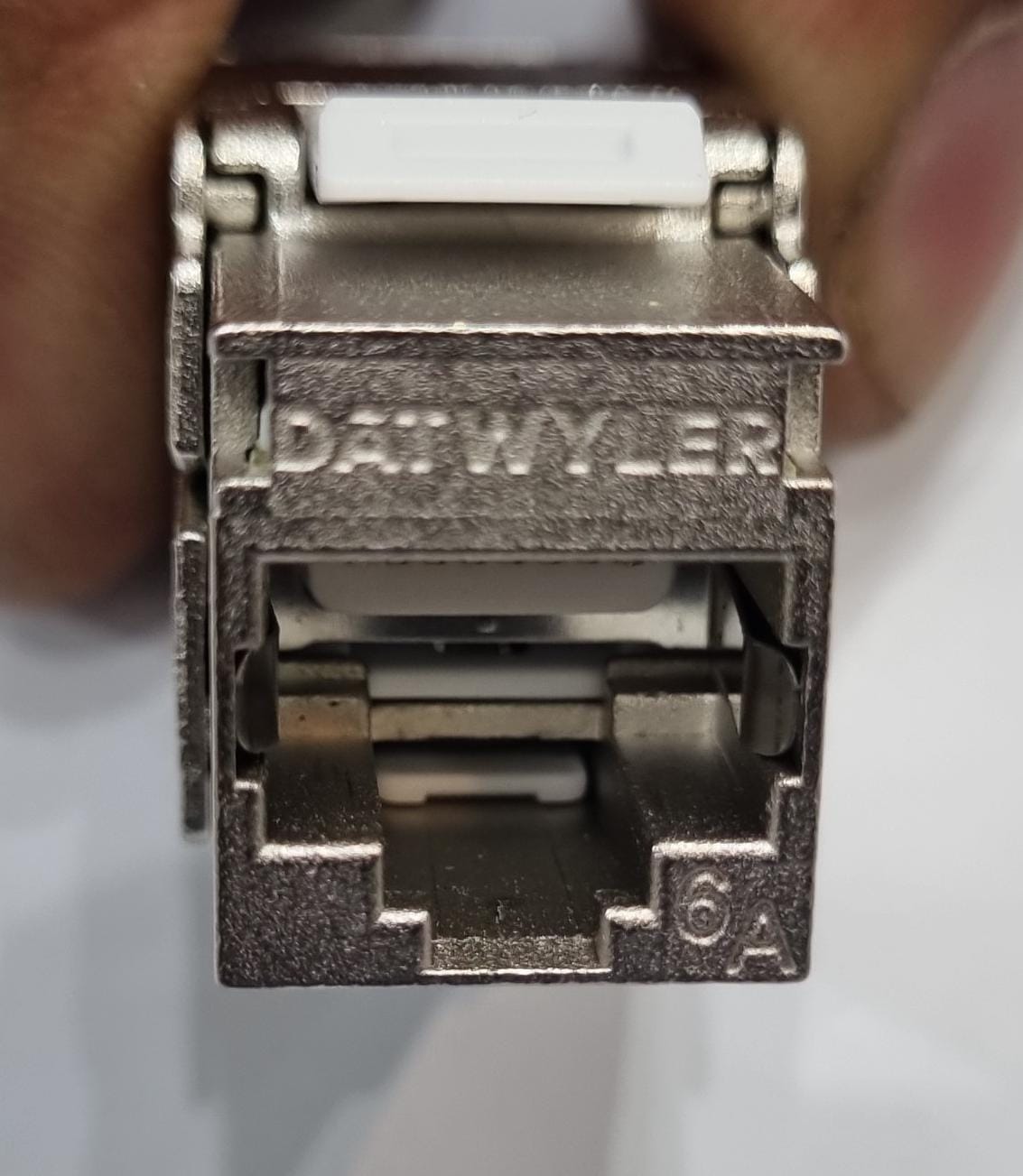

Cat 6A RJ45-Module Shielded MS-Keystone Plus (IEC) TIA-B - P/N# 418069 - TAIWAN

For the transmission of digital and analogue voice, video and data signals. The module MS-K Plus is specified up to 500 MHz in accordance with the component standard IEC 60 603-7-51. In combination with shielded Category 6A, 7 and 7A data cables all applications up to Class EA are applicable, that is including 10GBase-T (IEEE 802.3an). Useable for Power over Ethernet Plus (PoE+) in accordance with IEEE 802.3at. Compact zinc die casting housing. Special construction for high packing density in faceplates/outlets (up to 3 modules). Tool-less wire termination. 360° braid connection to the strain relief bar. Strain relief bar fixed with a cable tie. With snap-in mounting in patch panels and faceplates by a special kind of Keystone fitting (180° turned). MECHANICAL PROPERTIES Solid copper wire 0.51 mm (AWG 24) to 0.63 mm (AWG 22) Stranded copper wire dependent on construction Re-connection frequency ≤ 10 times when using the same or bigger wire diameter Diameter over insulation 0.7 to 1.4 mm (1.6 mm) Temperature range storing: - 40° C to + 70° C during installation: - 10° C to + 60° C in operation: - 20° C to + 60° C GENERAL PROPERTIES Termination Pair-configuration in accordance with TIA 568-A, clearly marked with a colour code Potential balancing 6.3 mm flat plug connection capability at the module Mounting possibilites Suitable for patch panel MS-K 24x and faceplates MS-K (2 or 3 port) STANDARDS Standards IEC 60603-7-51 (Cat.6A shielded, 500 MHz) IEC 60512-99-001 (PoE+) ISO/IEC 11801:2002 / Amd.2:2010 EN 50173-1:2011 TIA/EIA 568-B.2-10:2008 Cat./Class Cat.6A / Class EA VERSIONS

SAR 25.54

SKU: GS418069
