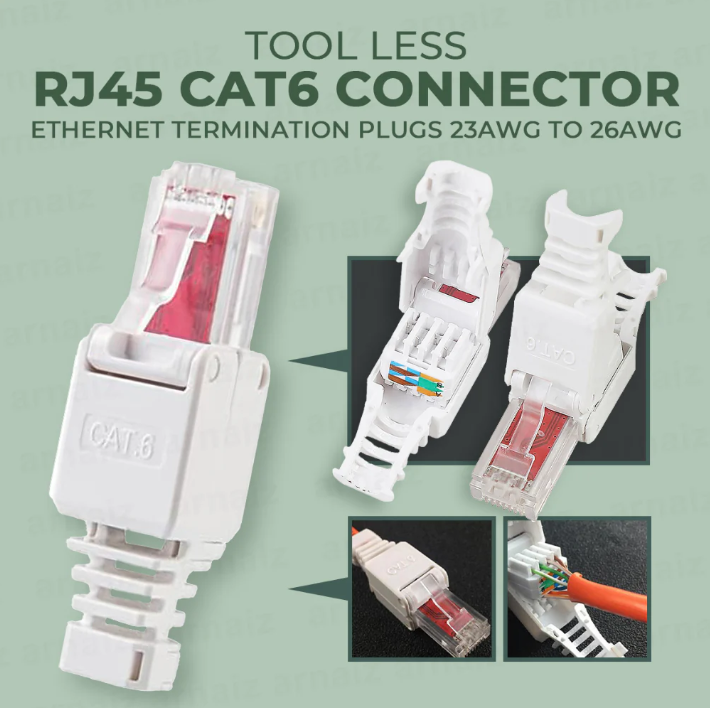

CAT6 Modular Plug – Tool-less Installation

Key Features Tool-less design – No crimping tool required Supports Cat6 standards – 250 MHz performance Compatible with: Solid & stranded UTP 23–26 AWG Housing: Durable polycarbonate with metal shielding (depending on model) Contacts: Gold-plated pins for stable signal transmission Suitable for: Patch cords, field termination, CCTV, routers, network switches, keystone replacements Installation Steps (Easy Guide) 1. Prepare the Cable Cut the cable cleanly. Strip approx. 25–30 mm of the outer jacket. Keep the pairs intact until routing. 2. Untwist & Arrange the Pairs Separate the four twisted pairs. Arrange wires per required wiring standard: T568B (most common): White/Orange Orange White/Green Blue White/Blue Green White/Brown Brown 3. Insert Wires into the Cap Place each conductor into the color-coded slots on the plug’s wiring cap. Ensure all conductors reach fully and sit properly. 4. Trim Excess Wires Cut off any wire extending beyond the slots for a clean seating. 5. Close the Tool-less Plug Place the loaded cap into the main plug housing. Press down firmly until the latch locks. The metal contacts will automatically pierce and connect to each conductor. 6. Verify the Connection Tug gently to ensure the cable is secured. Test using a network cable tester for continuity & pairing. Advantages Fast field termination No crimp tool required High-quality, stable signal Re-usable in some models Ideal for installations in tight spaces or on-site repairs Typical Applications Network patch cables LAN installations CCTV IP camera connections Office, home network wiring Data centers & server rooms

SAR 15.00

SKU: GS20251110
