Cat7 Data Cable S/FTP 4 Pairs, 600MHz, FRNC/LS0H Sheath Shealth , Orange (500 Meter/Roll) Model# 182911 - Datwyler Switzerland

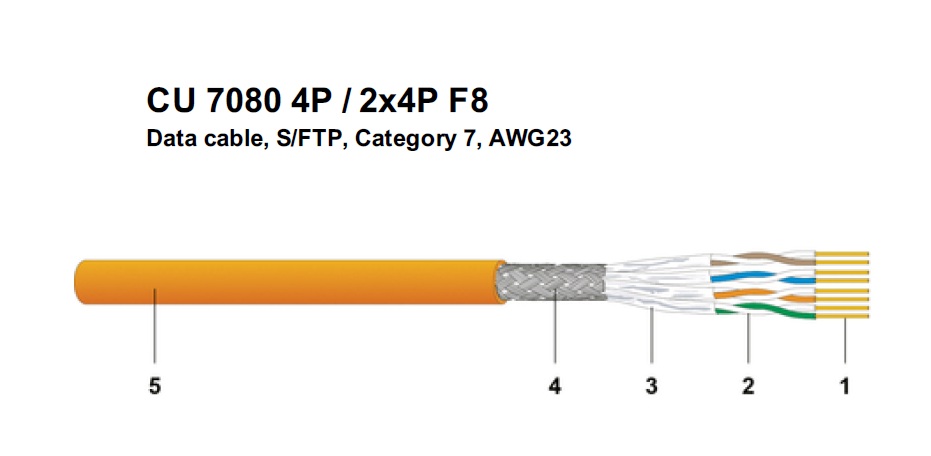

1 Inner Conductor: AWG23 Bare copper wire 2 PE insulated conductor: 1.4 Ø 3 Screen (pair): Alu PETP foil 4 Overall screen: Tinned braided copper 5 Outer sheath: FRNC/LSOH Orange RAL 2003 DESCRIPTION Electrically and mechanically superior quality Cat.7 data cable - exceeds the requirements of ISO/IEC 11801, IEC 61156-5, EN 50173-1 and EN 50288-4-1. Excellent shielding effect due to individually screened pairs and overall copper braid. Compatible with all current connecting hardware in accordance with EN 50173 and ISO/IEC 11801. APPLICATION Data cable for structured premises cabling. For the transmission of digital and analogue voice, video and data signals. Suitable for all ICT network applications up to class F applications (600 MHz) in accordance with EN 50173-1 and ISO/IEC 11801 and for the transmission of broadband signals (such as cable TV) in accordance with IEC 15018. Applicable for Power over Ethernet (PoE) / PoE+. ELECTRICAL CHARACTERISTICS Category 5e 6 6A 7 Frequency [MHz] 1 4 10 100 250 500 600 800 862 1000 Attenuation [dB/100m] 1.9 3.6 5.6 17.9 28 41 46 52 54 57 NEXT [dB] 100 100 100 100 100 92 90 84 83 80 PS NEXT [dB] 97 97 97 97 97 89 87 81 80 77 ACR-N [dB] 98 96 94 82 72 58 44 32 29 23 PS-ACR-N [dB] 95 93 91 79 69 55 41 29 26 20 ACR-F [dB] 98 98 98 78 69 56 45 39 37 33 PS-ACR-F [dB] 95 95 95 75 66 53 42 36 34 30

SAR 2,100.00

SKU: GS20250522
