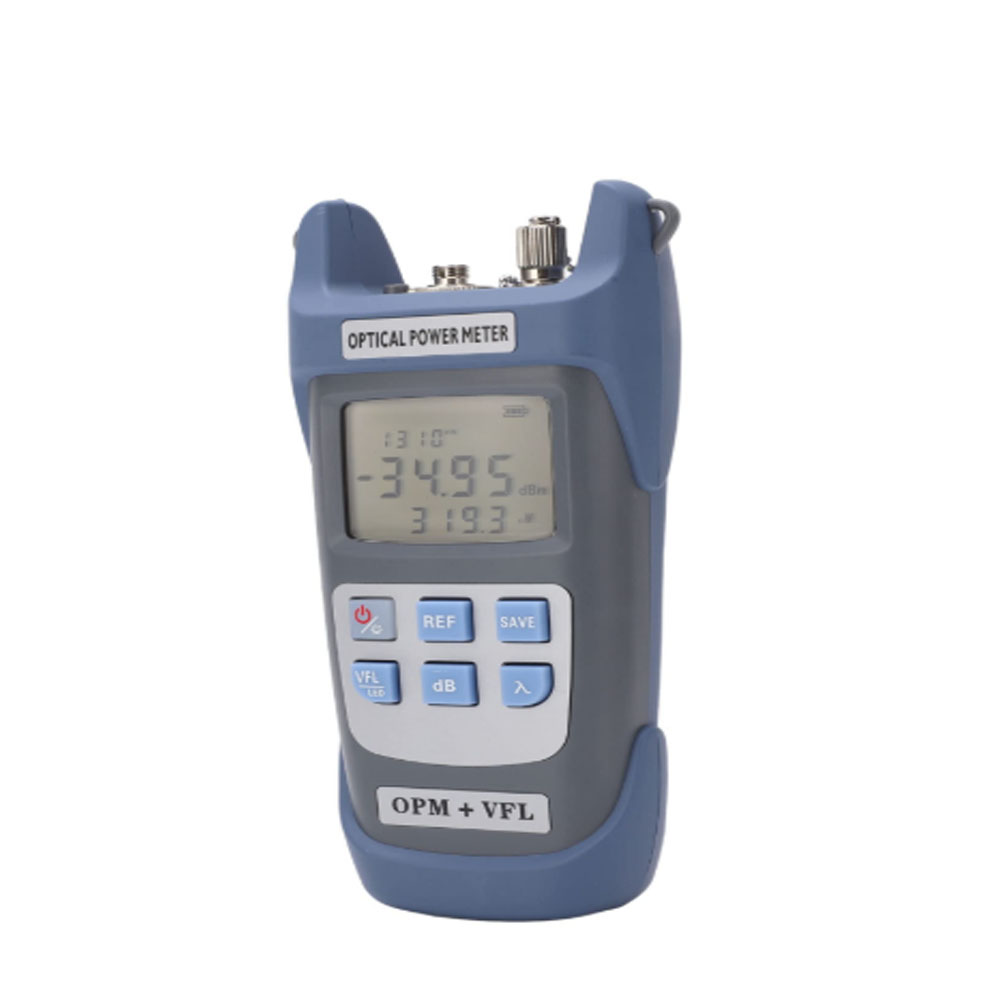

CNets Optical Power Meter with Visual Fault Locator (VFL) | OPM + VFL | Fiber Optic Tester for SM/MM Networks | -70~+6dBm Range | 10mW Red Laser Source | LCD Display & Data Save Function

📦 Key Features: 🔹 2-in-1 Design (OPM + VFL): Combines Optical Power Meter and Visual Fault Locator for convenient fiber optic testing and troubleshooting. 🔹 Wide Wavelength Range: Supports multiple wavelengths — 850, 1300, 1310, 1490, 1550, and 1625 nm — suitable for both single-mode and multi-mode fibers. 🔹 Accurate Measurement: Power measurement range from -70 dBm to +6 dBm, ensuring precise optical loss testing. 🔹 Built-in 10mW VFL: Red laser source helps locate fiber breaks, bends, and faulty connectors up to 10 km distance. 🔹 Easy Operation: Large LCD screen with backlight and intuitive buttons for REF, SAVE, λ, dB, and VFL functions. 🔹 Memory & Reference Function: Save test results and set reference values for consistent measurements. 🔹 Portable & Durable: Compact handheld design with rugged rubber protection for field engineers and technicians. ⚙️ Technical Specifications: Parameter Specification Power Measurement Range -70 dBm to +6 dBm Calibrated Wavelengths 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm Detector Type InGaAs Display LCD with backlight VFL Output Power 10 mW (red laser) Connector Type FC / SC / ST interchangeable Battery Life Up to 40 hours continuous Auto Power Off Yes Operating Temperature -10°C to +60°C 💡 Applications: Fiber optic cable testing and maintenance FTTH network installation and verification Data center and telecom field service Fiber fault location and continuity testing 📦 Package Includes: 1× Optical Power Meter with VFL 1× FC adapter 1× SC adapter 1× Protective carrying case 1× User manual 3× AAA batteries

SAR 159.00

SKU: GS06028
