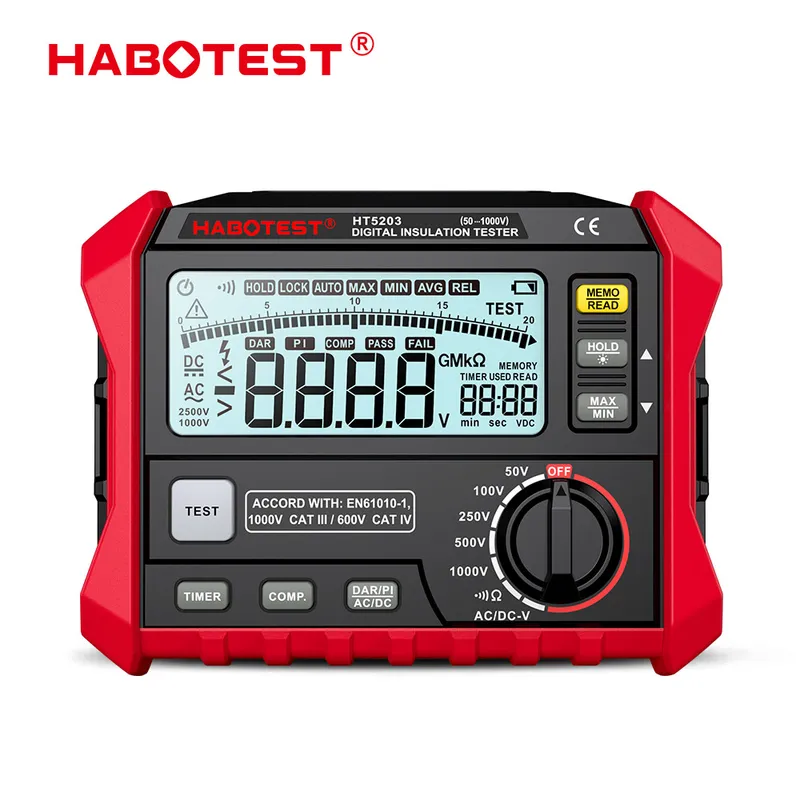

HABOTEST Insulation Tester Digital Megohmmeter High-Voltage Electrical Insulation Resistance Meter Megger Tester- HT5203

HT5203 Insulation Tester – Product Specifications Model: HT5203 Product Type: Digital Insulation Resistance Tester (Megohmmeter) Measurement Range • Insulation Resistance: 0.01 MΩ ~ 200 GΩ • Auto-ranging capability Test Voltage Options • 250V • 500V • 1000V • 2500V Accuracy • ±(3% + 5 digits) (typical) Display • Large LCD digital display • Backlight for low-light environments Additional Measurements • AC Voltage: 30V ~ 600V • DC Voltage: up to 600V Features • Polarization Index (PI) measurement • Dielectric Absorption Ratio (DAR) • Auto discharge function • Over-range indication • Low battery indication • Data hold function Power Supply • 8 × 1.5V AA batteries Operating Conditions • Temperature: 0°C ~ 40°C • Humidity: < 85% RH Safety Rating • CAT III 1000V / CAT IV 600V Applications • Electrical equipment testing • Cable insulation testing • Transformer insulation checking • Industrial maintenance

SAR 600.00

SKU: GS2604010008
