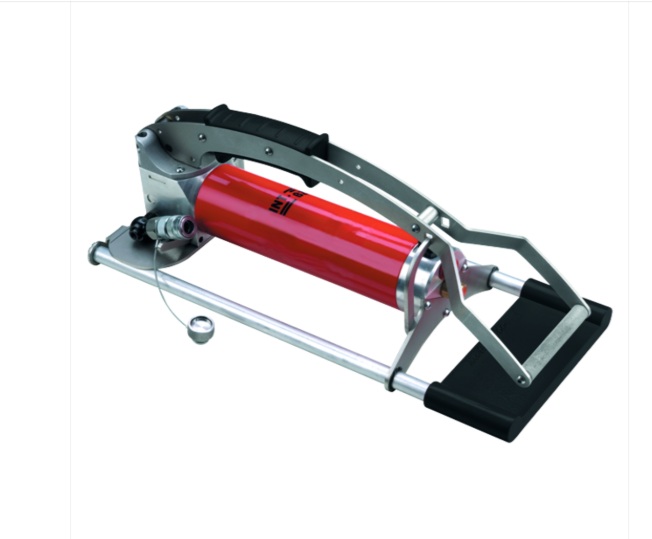

INTERCABLE - Foot operated hydraulic pump set with 16-630 sqmm crimping head and 14 hex. dies P/N. FPI70S-PP230-ME

FPI70S-PP230-ME refers to a high-performance Intercable Foot-Operated Hydraulic Pump system typically sold as a kit including a crimping head. This kit is designed for heavy-duty electrical cable management, combining a 700 bar (70 MPa) foot pump with a powerful 230 kN crimping head to handle large conductor cross-sections. Component Breakdown FPI70S (Foot-Operated Hydraulic Pump): According to Intercable Tools, this is a two-speed pump featuring a pressure gauge for monitoring. It provides a low-pressure capacity of 18.3 cm³/stroke for fast advancing and a high-pressure capacity of 2 cm³/stroke for the final crimp. PP230 (Hydraulic Crimping Head): This head delivers a compression force of 230 kN. According to Midline International, it features an openable head for easy positioning of crimping dies and is compatible with cable ranges from 16 mm² to 630 mm². ME (Metal Case/Suffix): Typically indicates the kit is supplied in a metal carrying case for durability in field environments. System Specifications Feature Details Operating Pressure 700 bar (70 MPa) Crimping Force 230 kN Crimping Range 16 mm² to 630 mm² Pump Oil Capacity 1200 ml Head Weight Approximately 5.5 kg Operating Temp -20°C to +40°C Key Features Two-Speed Device: Intercable documentation highlights the automatic switch between fast no-load advancing and slow under-load crimping to save user effort. Hands-Free Operation: The foot-operated design allows technicians to use both hands to align the cable and die before crimping. Robust Connection: Features a high-mounted quick-release coupling with a dust cap to prevent contamination of the hydraulic fluid.

SAR 14,500.00

SKU: GS20260233
