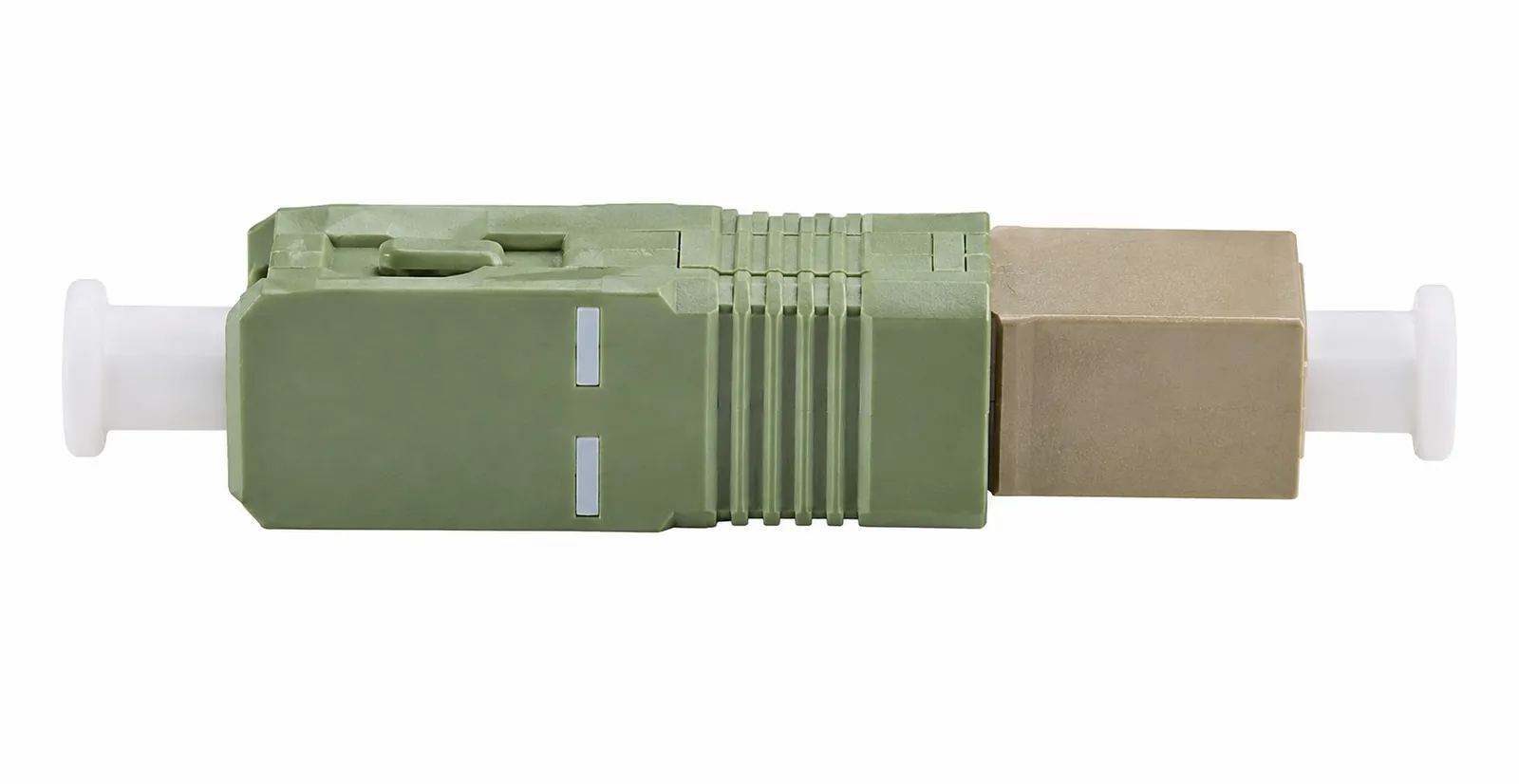

SC/UPC (Male) to LC/UPC (Female) MM 50/125 Hybrid Fiber Optic Adapter

The SC/UPC Male to LC/UPC Female Multimode (MM) 50/125 Hybrid Fiber Optic Adapter is designed to connect SC and LC fiber optic interfaces, enabling seamless integration between different connector types in multimode fiber optic networks. It delivers low insertion loss, excellent return loss, and reliable signal transmission, making it suitable for data centers, enterprise LANs, telecom, and industrial networking applications. Key Features * SC/UPC Male to LC/UPC Female Hybrid Adapter * Multimode (MM) 50/125 µm fiber compatibility * Low insertion loss: 0.19 dB @ 850 nm & 1300 nm * High return loss (Reflectance): 37.7 dB @ 850 nm, 37.8 dB @ 1300 nm * Precision ceramic alignment for stable optical performance * Compact and durable construction * Easy plug-and-play installation * Individually tested and serialized for quality assurance Specifications * Connector A: SC/UPC Male * Connector B: LC/UPC Female * Fiber Type: Multimode (50/125 µm) * Polish Type: UPC * Insertion Loss: ≤0.19 dB * Operating Wavelengths: 850 nm / 1300 nm * Return Loss (Reflectance): ≥37.7 dB * Application: Fiber optic patching, network upgrades, telecom, data centers, FTTx, and enterprise networks Package Includes: * 1 × SC/UPC Male to LC/UPC Female MM 50/125 Hybrid Fiber Optic Adapter * Individual protective packaging with test report label

SAR 30.00

SKU: GS2608000003
