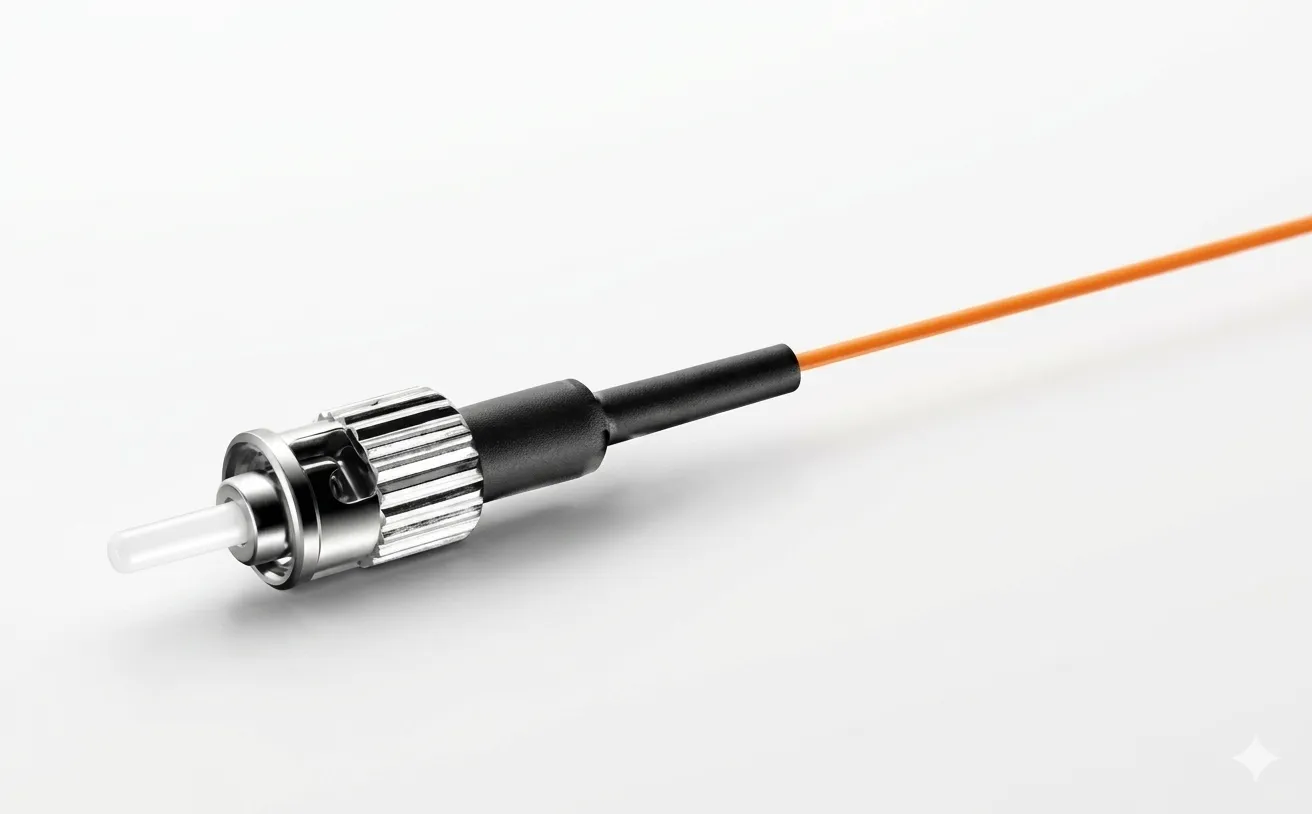

ST/UPC PIGTAIL OM2 0.9MM LSZH (50/125um)1.5 MTR ORANGE COLOR-INFAST

Technical Specifications • Connector Type: ST (Straight Tip) bayonet-style connector. • Polish Type: UPC (Ultra Physical Contact), providing lower insertion loss (≤0.3 dB) and optimized return loss (≥30 dB) compared to standard PC polishing. • Fiber Class: OM2 Multimode. It utilizes a 50/125µm core/cladding diameter optimized for short-to-medium distance data transfers over 850nm and 1300nm wavelengths. • Cable Diameter: 0.9mm (900µm) tight buffer. This thin footprint is ideal for space-constrained routing inside splice trays and Optical Distribution Frames (ODFs). • Jacket Material: LSZH (Low Smoke Zero Halogen). In the event of a fire, this material emits limited smoke and no toxic halogen gasses, making it safe and compliant for indoor installations. • Length: 1.5 Meters, giving technicians ample slack to strip, cleave, and perform splicing maneuvers inside enclosures. • Jacket Color: Orange, which complies with industry standards to instantly identify standard OM1/OM2 multimode installations.

SAR 7.00

SKU: GS2607000044
